Southern structure:
Builder's plaque at southern end of structure;
View north from southern end
|
|
Southern structure:
Southern counter truss with details of hinge connection and bearing at abutment
|
|
Southern structure:
Truss and concrete bent details
|
|
Southern structure and slag pile:
View north near midpoint of structure;
Slag pile separates 840 ft northern spans (to left) from 500 ft southern spans;

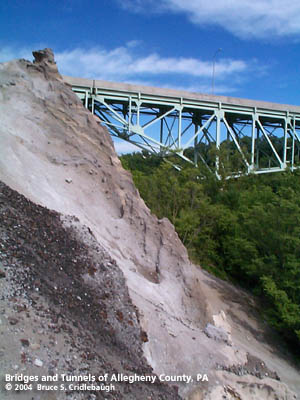

Southern spans emerging from slag pile;
Slag pile adjacent to the west in Peters Creek valley
|
|
Northern structure:
View north from slag pile;
Two views of girder span between slag pile and cantilever counter;
Concrete bent with girder span to right and cantilever counter;
Cantilever counter;
Detail of hinge between second and third panel of cantilever counter
|
|
Northern structure:
View of northern structure from slag pile;
Details of trusses and bents
|
|
Northern structure:
Two girder spans at northern end of structure;
View south toward bend near midpoint of structure;

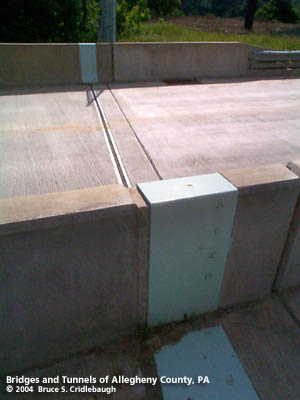

Toothed expansion joint between northern girder spans;
View east toward USX Clairton Coke Works
|
